30W spot pagoda

SPL-LED-663S

1pc 30W white LED in center with high output 8800Lux @ 3 m

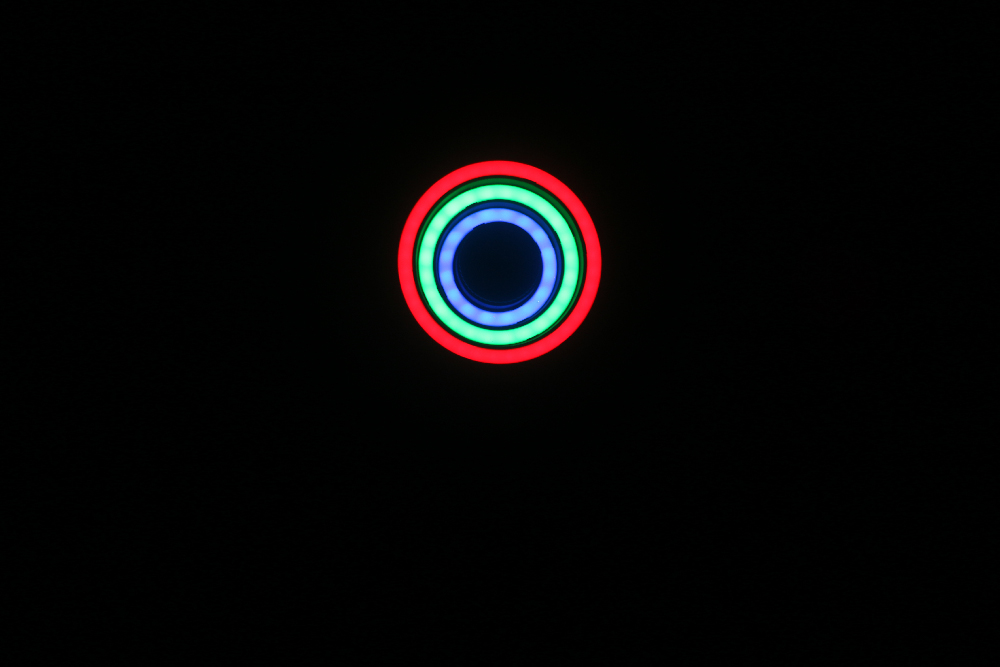

3 rings of 0.2W 3in1 SMD5050 LEDs (76pcs in total) for ring chasing, color change, wash, strobe
1pc static color wheel with 9 colors plus open
1pc static gobo wheel with 9 gobos plus open
Manual focus

Detailed Introduction

Power

Input voltage:AC100-240V 50/60Hz

Power consumption:80W

Fuse:2A/250V,¢5*20


 Fixture

IP rating:IP20

Cooling method: fan cool

Max ambient temp:45℃

Case color:black (with rubber finishing)


 LED

Beam effect:1PC Tianxin 30W white LED

Chasing+wash+strobe effect: 88pcs 0.2W 4in1 SMD5050 LED

Average lifespan: 50,000 hours


 Control

DMX channel:12/23CH

DMX connector:3Pin XLR input/output

control mode:DMX/master-slave/auto/sound

Pan:630/540°

TILT:200°

Display: LED display

1pc static gobo wheel: 9 gobos plus open

1pc static color wheel: 9 colors plus open

Manual focus: yes

 Color effect

Color:white+color wheel, RGB color mixing for SMD LED

Standard beam angle: 2.35°

Standard spot angle:4.7°

Dimming:0-100%

Lux @ 3m for 1PC 30W LED: 8800Lux

Lux @ 5m for 1PC 30W LED: 6000Lux

Strobe:25/S


 Dimension

Product dimension: 264.5*168*368mm

N.W:  5.1KG

Carton dimension: 56.5*46*36cm (2pcs/carton)

G.W.: 14.3KG
